48.3 mm (1.90") ID
101.6 mm (4.00") OD
The machining capacity of the TTSNG101 is 48.3 mm (1.902) to 101.6 mm (4"). The TTS splitframes can be driven either pneumatically or electrically. In line or right angle drive available.

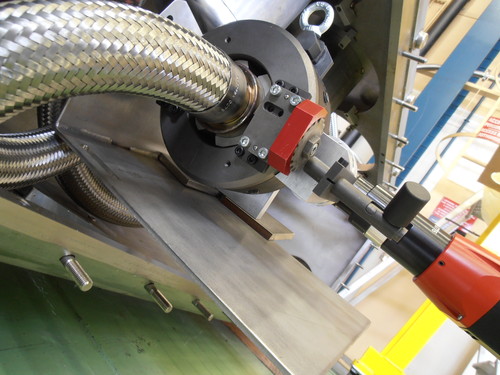

TTSNG101 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 48 to 101 mm TTSNG101
Technical Features
